DoorBird

Positives

• Price
• Design options
• Simplicity
• Proprietary cloud app

Negatives

• Bad audio quality via SIP

Setup Instructions

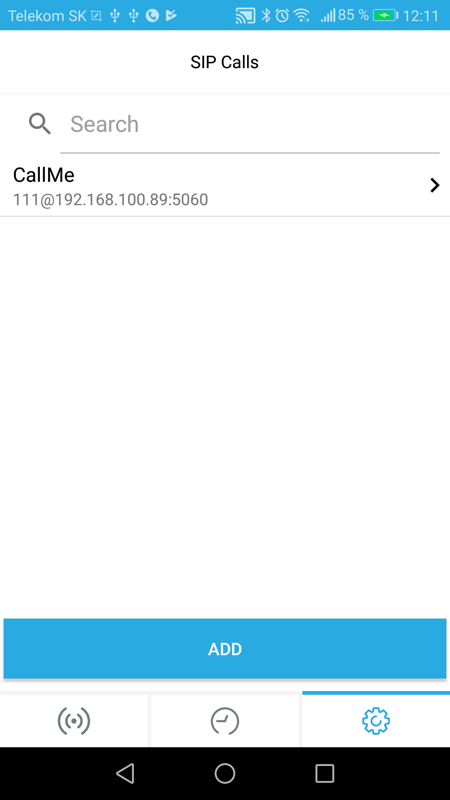

Step 1: Initial Configuration

Install the DoorBird app and follow administrative setup instructions by scanning the QR code provided by the manufacturer.

In the administration page, access SIP Calls and add at least one user.

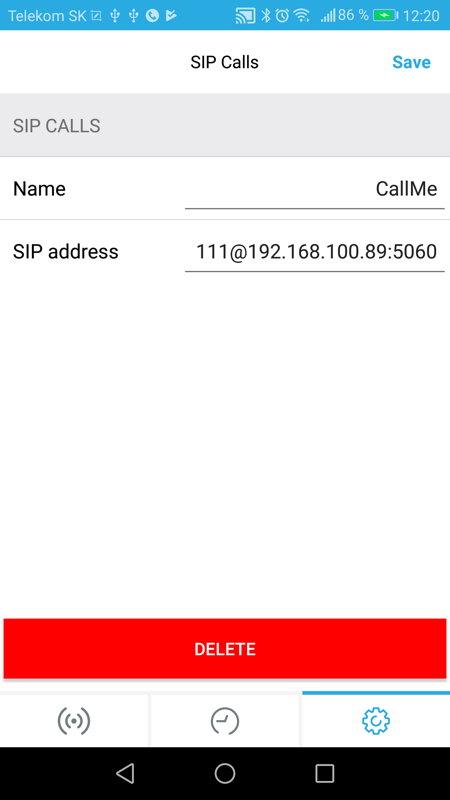

Step 2: Define SIP User

Set the Name to any value (example: “CallMe”) for later reference.

Configure SIP address format: nnn@Core IpAddress:5060 where:

• nnn = SIP number sent to Core SIP server
• Core IpAddress = Core IP (found in TapHome app location settings)
• 5060 = SIP UDP port

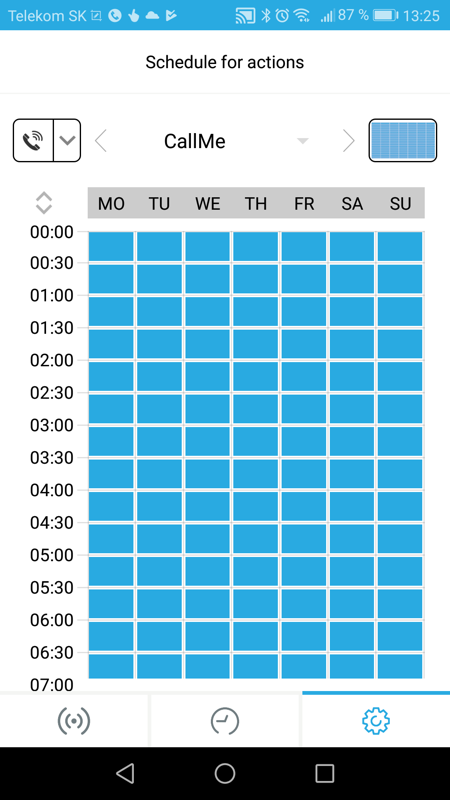

Step 3: Schedule Doorbell

Navigate to Schedule section. Select SIP call from left menu, choose the user created previously, and set activation times.

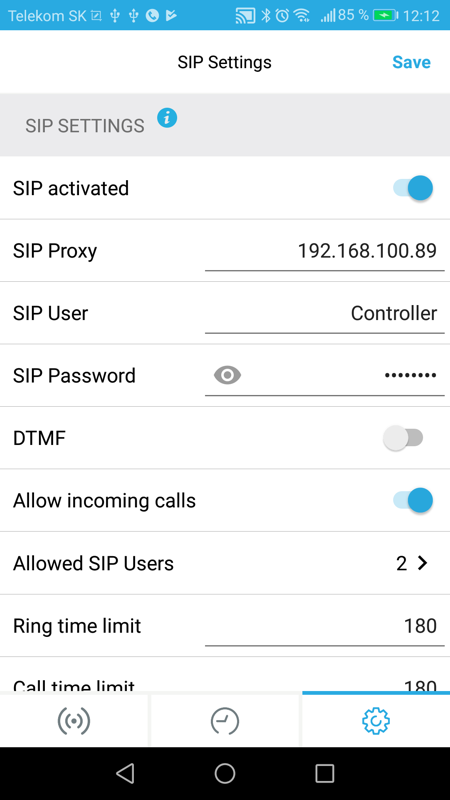

Step 4: SIP Settings

Activate SIP and set SIP proxy to TapHome Core IP address.

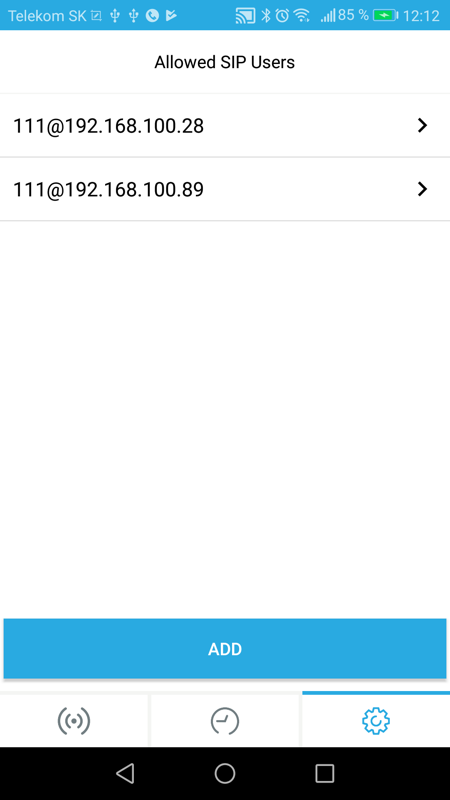

Step 5: Allowed SIP Users

Add user with phone number 111 and TapHome Core IP address.

Save all changes when prompted.

Resources

• Producer User Manual
• Installation Video
