Blinds Calibration Wizard

Start blinds calibration wizard confirmation

This wizard helps installers properly calibrate blind timing settings. Incorrect parameters typically cause blinds to drift toward one extreme position over extended use, resulting in actual blind position differing from the application display.

Starting the Wizard

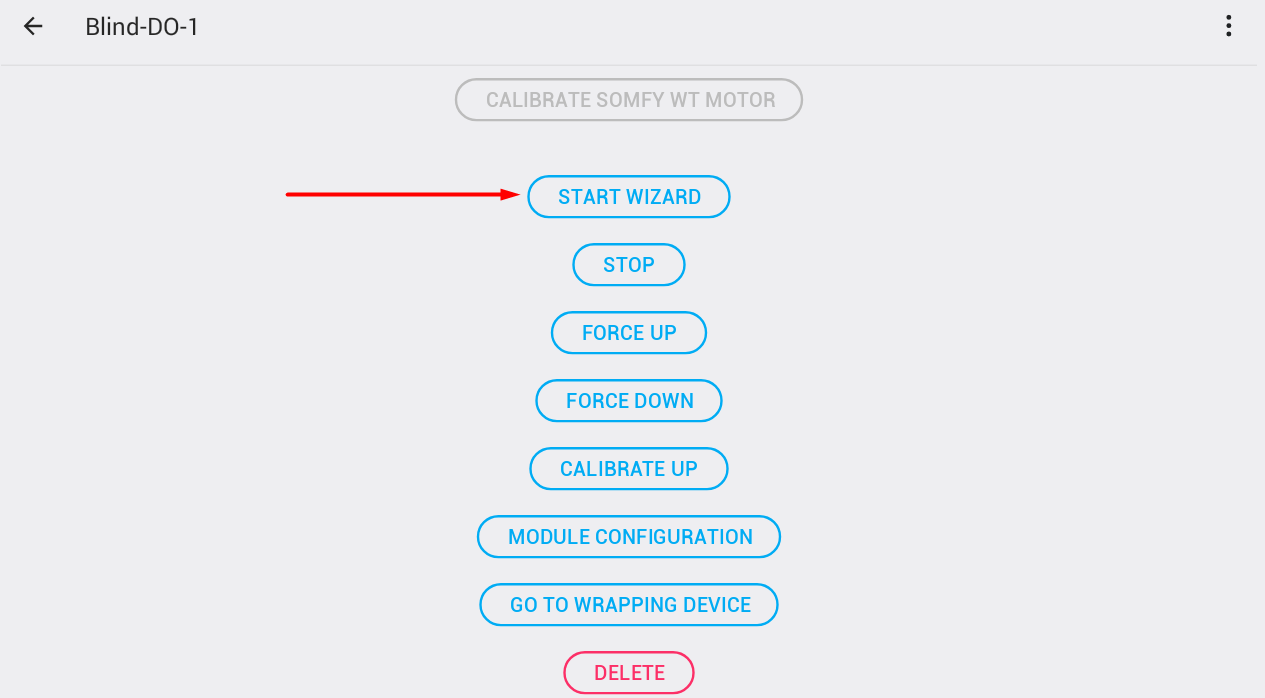

Navigate to blinds service settings and select the Start wizard button to begin calibration. The wizard will modify the blinds timer parameters during its operation.

Important Notice

Make sure you are connected to the installation locally (wifi / cable) and not via data (4G). You also need to run the wizard without active SR on the device.

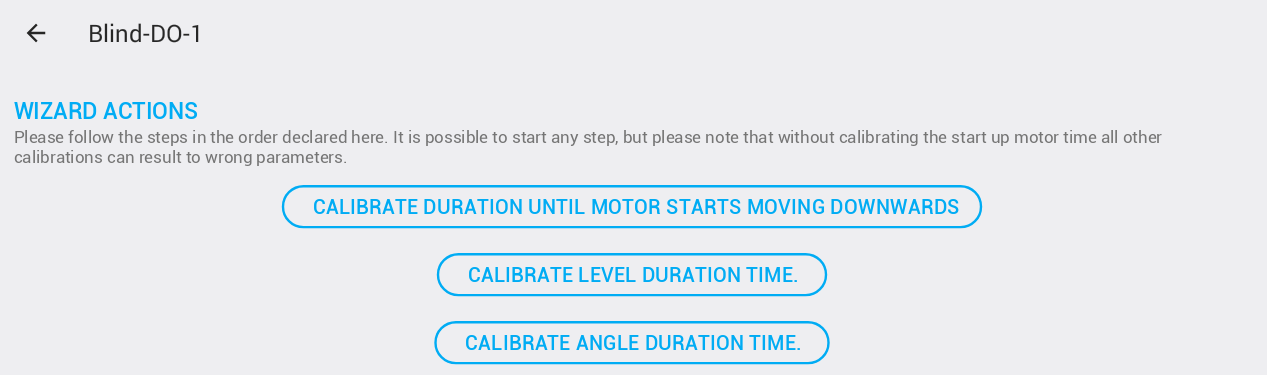

Three-Step Calibration Process

Step 1: Calibrate Motor Startup Duration

Objective: Measure the time required for the motor to begin moving.

1. Ensure blinds are fully raised
2. Use the Move up button to adjust position
3. Click Next when ready

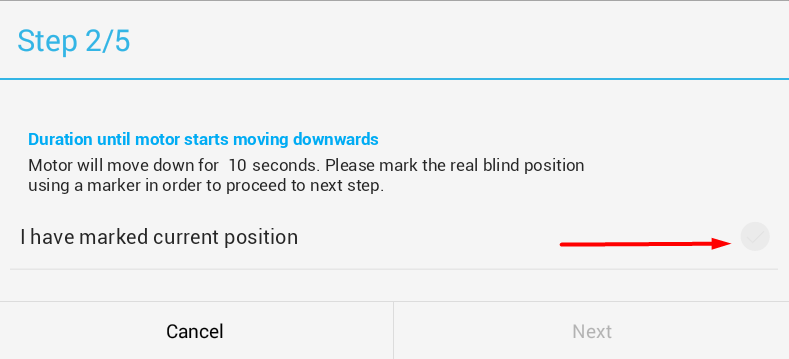

4. Blinds will descend for 10 seconds - mark the final position with a sticker
5. Blinds return to top position

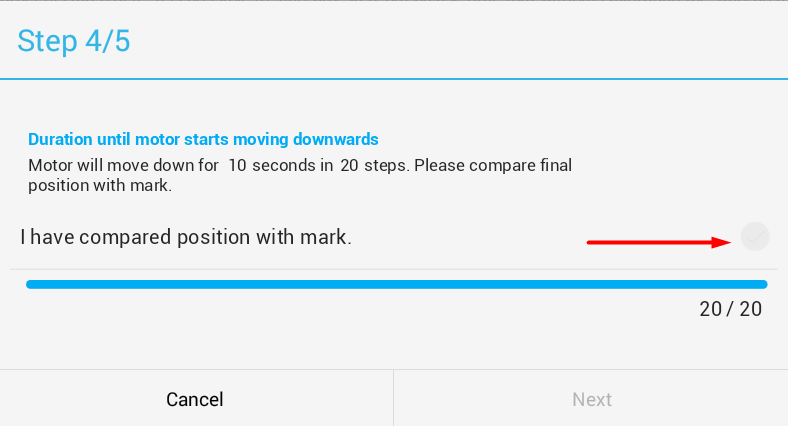

6. System descends again in 20 small increments
7. Compare actual position against marked location
8. Adjust startup time:
   • Increase this value if blinds change angle from 0% to 100% correctly, but if you change from 0% to 10% to 20% ... to 100%, the resulting angle is not fully open/closed. the value if motor didn’t reach the mark
   • Value decreases the value if motor exceeded the mark
9. Use small increments (5-10 ms)
10. Repeat until position variance is under 5 mm
11. Click Next to continue

Practical Tip

Precise calibration of motor startup time is crucial for proper functioning of all other parameters. Take sufficient time with this step.

Step 2: Calibrate level duration time

Objective: Measure complete top-to-bottom travel time and vice versa.

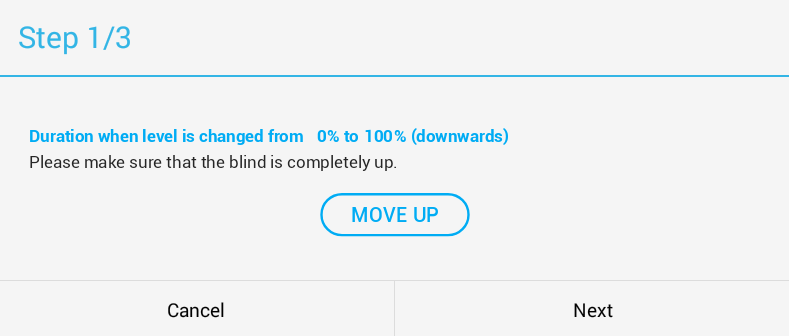

1. Verify blinds are at top position

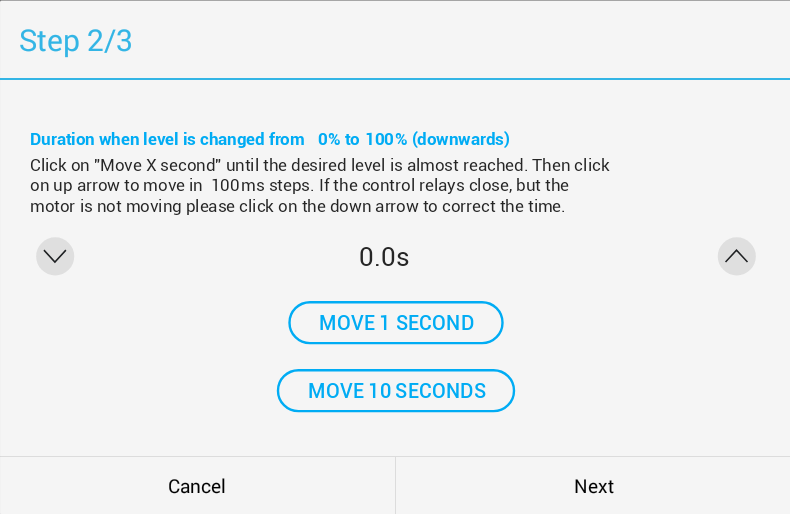

2. Click “Move for 10 seconds ” until blinds approach bottom position (but not fully down)
3. Use “Move for 1 second ” for fine tuning
4. Fine-tune with 0.1-second increments to reach exact bottom position
5. For mechanically stopped blinds, listen for relay click before stopping timer
6. Click Next when blinds are at bottom position

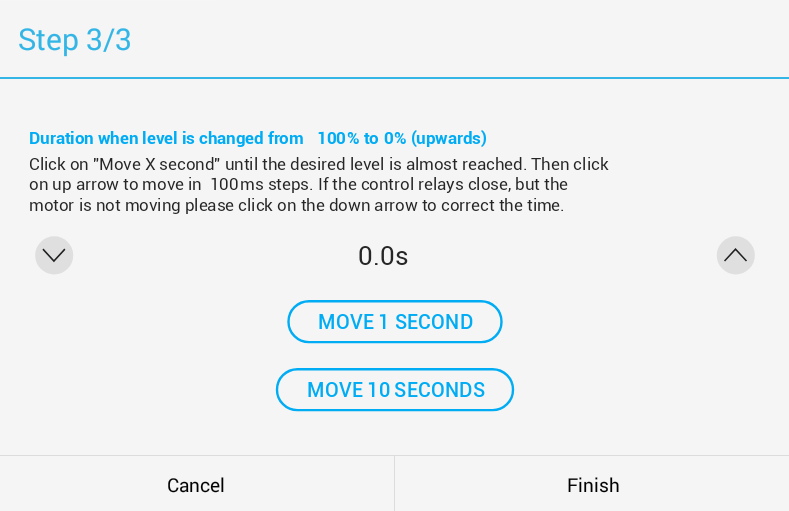

7. Repeat the procedure for upward movement
8. Click Finish when blinds reach top with accurate timing

Note for Different Blind Types

Some blinds have mechanical end-stops, others use timing. Adapt calibration to your blind type. Upward travel typically requires slightly more time than downward movement.

Step 3: Calibrate angle duration time

Objective: Set blade rotation timing parameters.

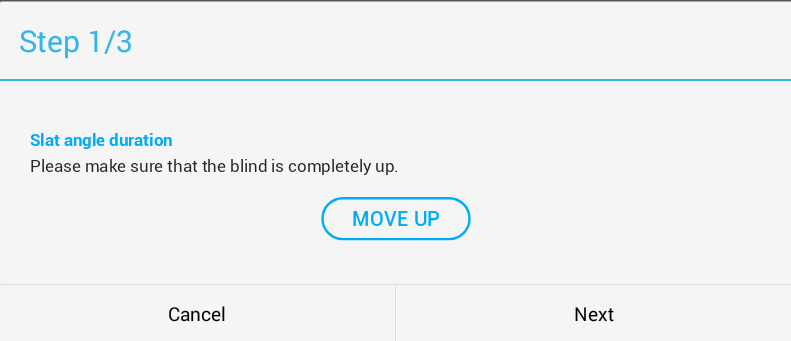

1. Confirm blinds are in raised position

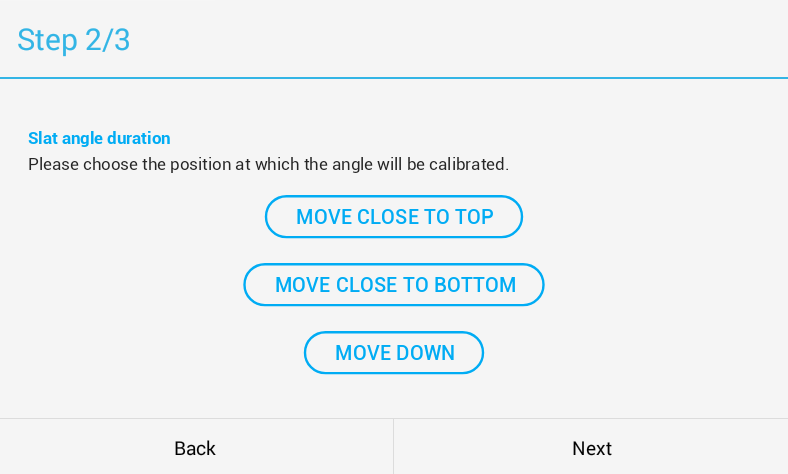

2. Please choose the position at which the angle will be calibrated.
   • “Move close to top ”: Positions at 20% level time or 5 seconds (whichever is smaller)
   • “Move close to bottom ”: Positions at 80% level time or 5 seconds from bottom (recommended)
   • “Move down”: Manual adjustment with 1-second increments per click

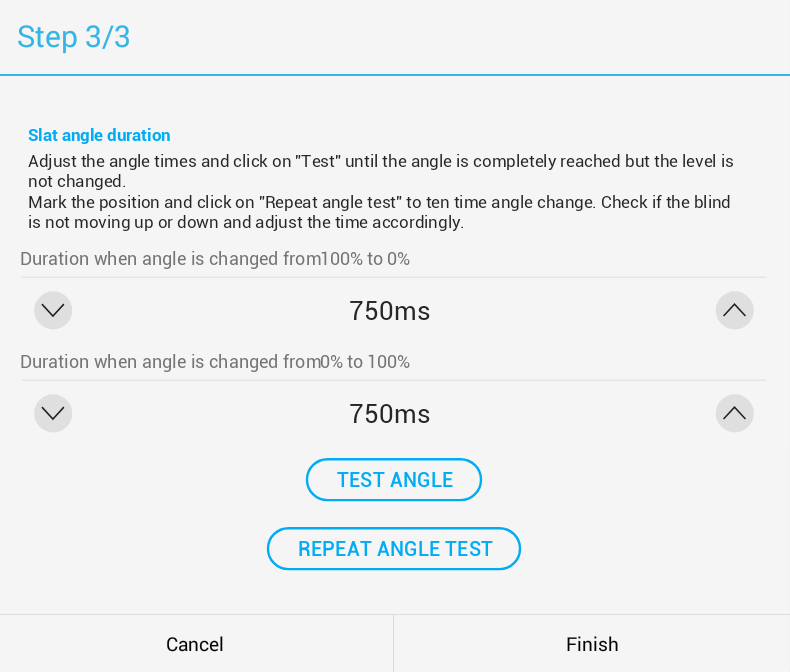

3. Click “Test angle ” to verify blade adjustment
4. Mark position with a sticker
5. Run “Repeat angle test ” to check for cumulative errors across multiple adjustments
6. Click Finish when blinds maintain position through angle changes

Calibration Verification

After completing calibration, test the blinds in real-world usage. Verify that the position in the application matches the actual position even after multiple movements.

Related Topics

• Blinds, Slides, Awnings - Basic Configuration
• Blind Azimuth Adjustment
• Editing Multiple Devices

Video Tutorial

Note: This guide is part of TapHome documentation. For more information, contact technical support.
