Schemes

Introduction

Schemes allow you to create interactive floor plans or visualizations of your home/building, where you can:

• Place devices on a photo or floor plan
• Display sensor values directly on the scheme
• Add text labels and descriptions
• Control devices by clicking

Currently, devices can only be controlled by clicking to open the device details, where you can change their values.

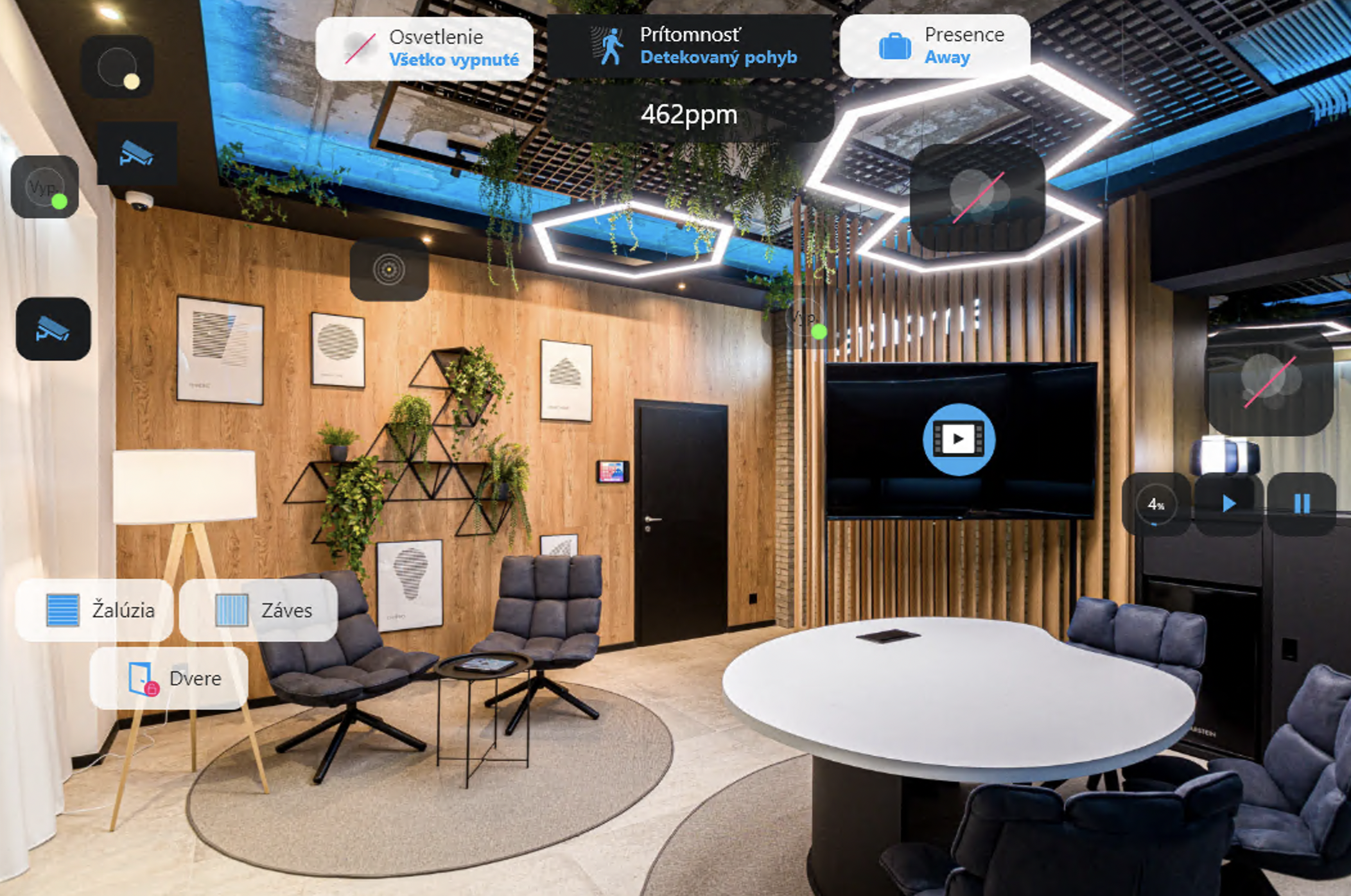

Examples of Schemes

Sample Backgrounds for Download

You can download sample backgrounds for your schemes:

3D Floor Plans

Download 3D floor plan – light

Download 3D floor plan – dark

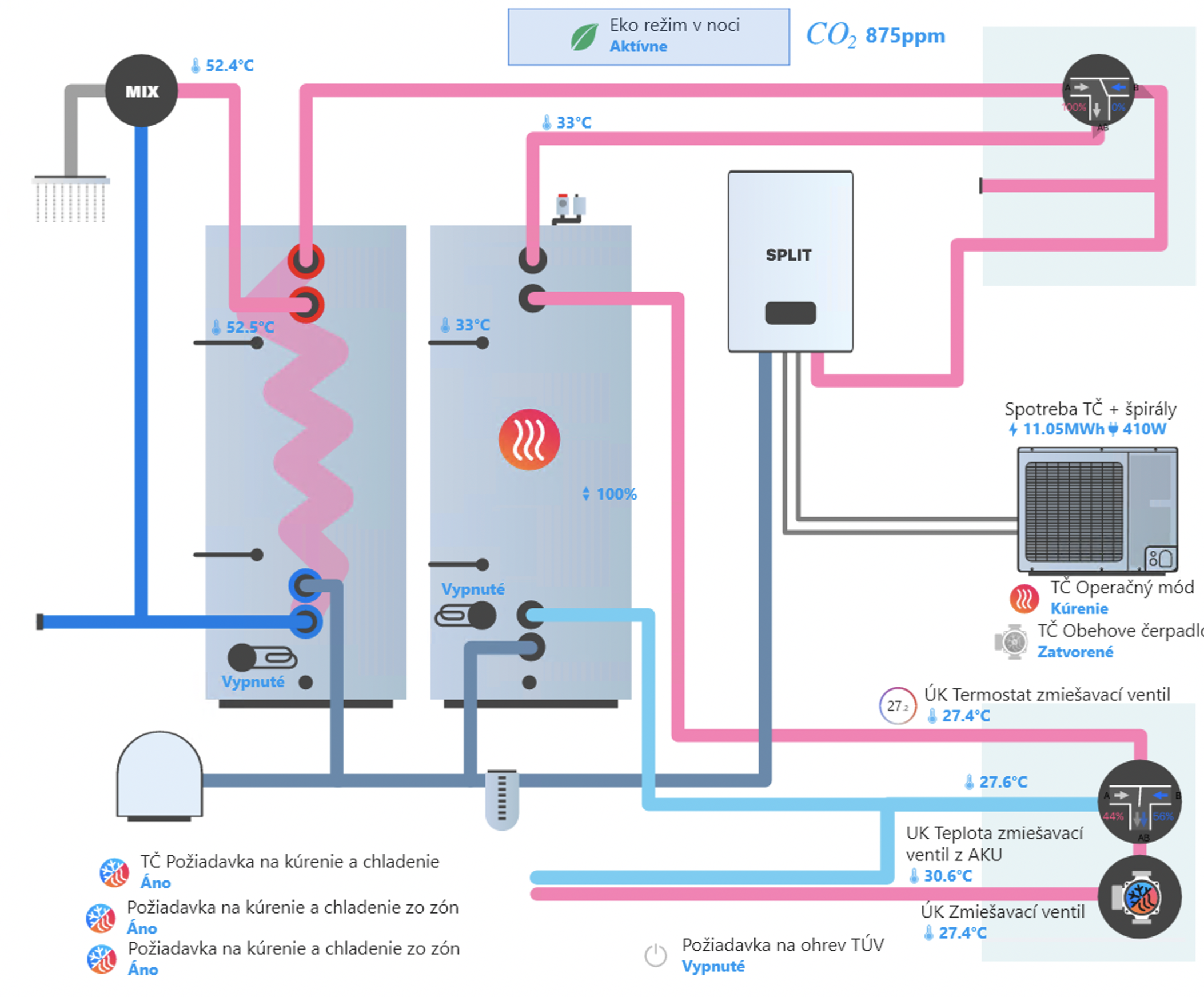

Hydraulic Schemes

Download heat pump hydraulics – light

Download heat pump hydraulics – dark

Industrial Schemes

Download industrial scheme – light

Download industrial scheme – dark

Residential Schemes

Download residential scheme – light

Download residential scheme – dark

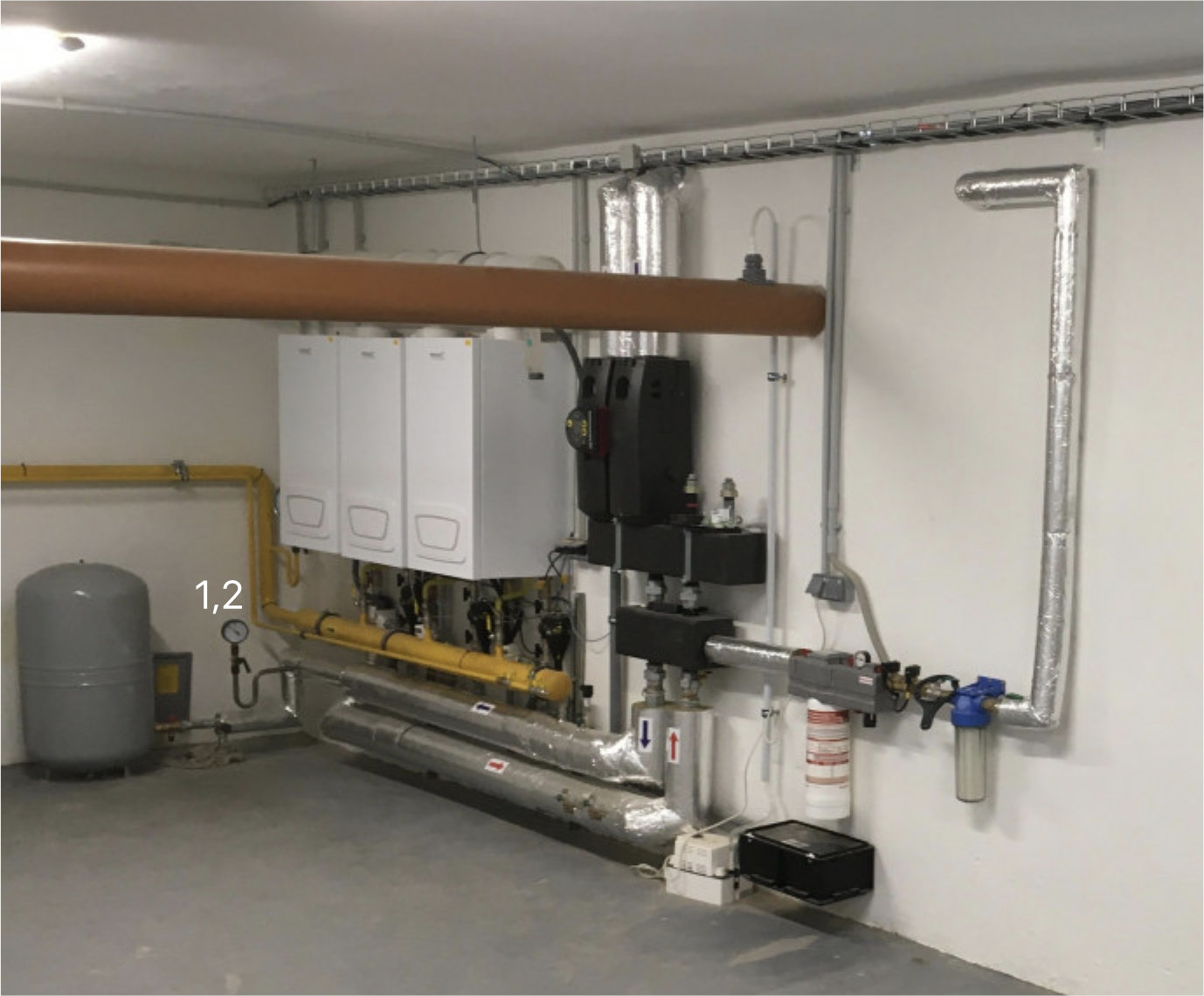

Boiler Rooms

Download boiler room scheme

Creating a New Scheme

Adding a Scheme Section

1. On any surface, switch to Edit mode.
2. Add a new section of type Scheme .
3. In the scheme properties, select the image to be used as the background.

Supported file formats: *.jpg, *.jpeg, *.png, *.webp, *.svg
Images larger than 3200x3200 will be automatically resized.

Global scale

If your devices appear too small, adjust Global scale in the scheme properties (for example to 250% or 300%).

Editor Tools

The scheme editor offers the following tools:

✓ Select

Basic tool for selecting and moving objects on the scheme.

• Click to select an object
• Double-click to open the main properties of the object

Text

Add a text label or description to the scheme. You can:

• Align (left, center, right)
• Bold text
• Adjust for light/dark mode
• Set background opacity

Device

Add a device to the scheme:

• Select a device from the list
• Filter by zones
• Configure Visualization (icon, name, value)
• Set scale, corner radius, and background opacity

Value

Add statistical values from devices.

Working with Objects

Duplicating Objects

If you have defined the appearance of one device, you can use it as a template:

1. Select the device with the desired appearance.
2. Use Ctrl + D or Duplicate .
3. All newly created devices will have the same properties.

Bulk Adding Devices

You can add multiple devices at once:

1. Click on the device icon in the tools.
2. Filter devices by zone (e.g. living room).
3. Select all devices you want to add.
4. Place them in the desired locations.

Object Properties

Visual Settings for Devices

• Name – show/hide device name
• Icon – show icon
• Value – show current value
• Center – center alignment
• Scale – object size
• Round corners – corner rounding
• Opacity – background opacity (0–100%)

Theme

Set the theme according to the application:

• Light – for the application in light mode
• Dark – for the application in dark mode
• Match app setting – automatic switching

Scheme Properties

Global settings for the entire scheme:

Background

• Width – scheme width in pixels
• Height – scheme height in pixels
• Color – background color (e.g. #000000)
• Image – upload background image
• Dark color – background color for dark mode (visible if dark mode is enabled)
• Dark image – background image for dark mode (visible if dark mode is enabled)

Global scale

Slider to adjust the size of all objects on the scheme (100%–400%).

Display Modes

The scheme operates in two modes:

Pinned Panel

The device detail is displayed in a sidebar that remains open.

Floating Panel

The device detail is displayed as a floating window above the scheme. The panel automatically hides when you click outside.

Keyboard shortcuts

Editing

Appearance

Media library

All images used in schemes are stored on the Core drive.

You can check the storage status in Media library , where you can see:

• How much space the images occupy
• How much storage capacity is still available

Synchronization

All changes in schemes are automatically:

• Uploaded to the drive
• Distributed to all devices
• Synchronized across all platforms (Windows, Android, iOS)
